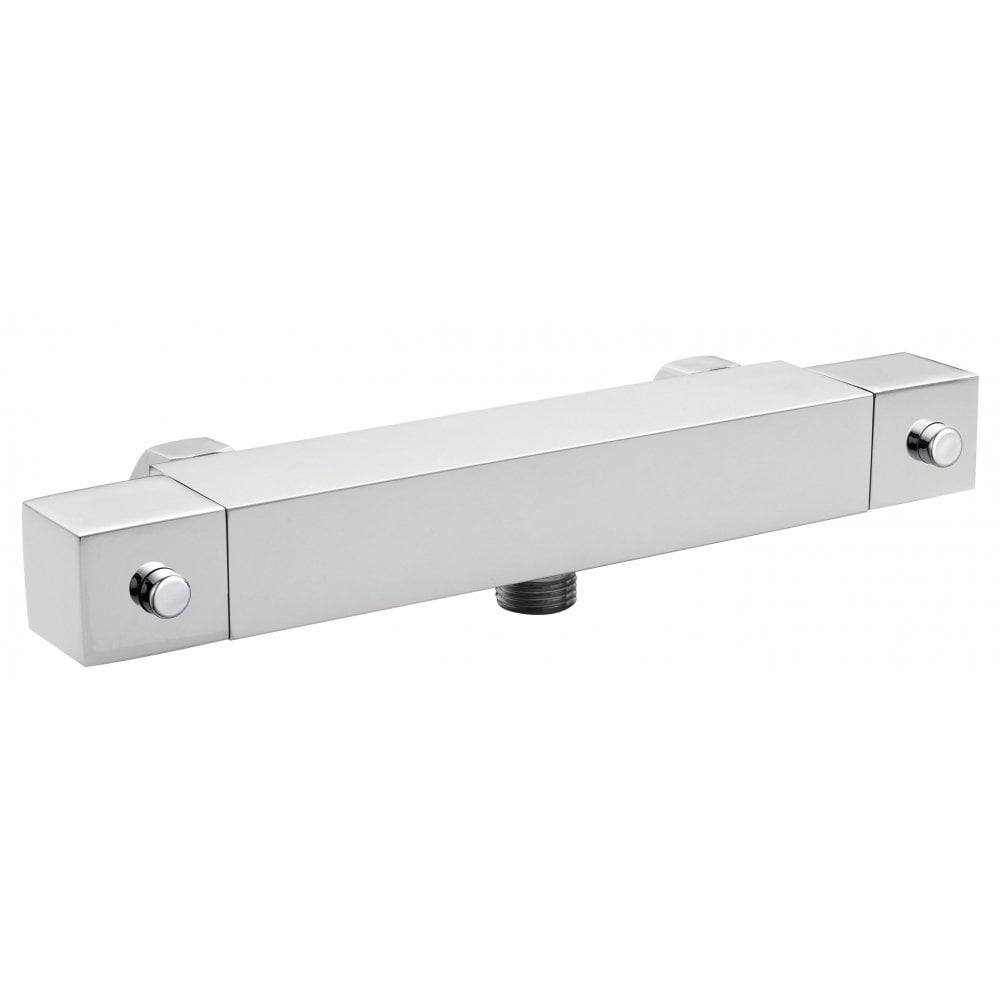

Nuie Square Thermostatic Bar Valve Bottom Outlet Chrome

• Nuie JTY316 Thermostatic Square Bar Shower Valve - Chrome

  SKU: JTY316
  Finish: Chrome
  Guarantee: 5 Years (1 Year on serviceable parts)
  Brand: Nuie

  ---

  Product Summary

  Upgrade your shower experience with the Nuie JTY316 Thermostatic Square Bar Shower Valve. Designed with a striking modern square profile and finished in polished chrome, this valve offers both style and safety. Its thermostatic technology ensures consistent water temperature while preventing scalding, even during pressure fluctuations. With dual controls for easy adjustment of flow and temperature, it’s an ideal choice for contemporary bathrooms.

  ---

  Key Features

  • Thermostatic bar shower valve with bottom outlet

  • Durable solid brass and ABS construction

  • Dual controls: left handle for flow, right handle for temperature

  • Patented Valquest thermostatic cartridge – scale-resistant and fully reversible

  • Anti-scald protection with automatic shut-off on hot or cold water failure

  • Suitable for all plumbing systems (minimum 0.1 bar – recommended 0.5 bar)

  • Can be mounted vertically or horizontally

  • 150mm pipe centres with 15mm compression connections

  • Sleek square bar design in polished chrome

  • Ideal for pairing with a slide rail kit (sold separately)

  ---

  Product Dimensions

  Dimension	Measurement
  Width	257mm
  Height	32mm
  Depth	40mm
  Pipe Centres	150mm
  Inlet Size	15mm (½" BSP)
  Weight	Approx. 1.46kg

  ---

  Technical Details

  Specification	Details
  Cartridge Type	Thermostatic Valquest
  Flow Rates	4 l/min @ 0.1 bar 9 l/min @ 0.5 bar 14 l/min @ 1.0 bar 21 l/min @ 2.0 bar 26 l/min @ 3.0 bar
  Minimum Pressure	0.1 bar
  Recommended Pressure	0.5 bar or higher
  Material	Brass/ABS
  Installation	Wall-mounted, vertical or horizontal
  Outlet	Bottom only

  ---

  Downloads

  • Fitting Instructions (PDF)

  • Technical Datasheet (PDF)

  • Guarantee Information (PDF)

  ---

  What’s Included

  • 1 × Nuie JTY316 Thermostatic Square Bar Valve

  • Fixings

  Note: Shower hose and handset sold separately.
